8.2 MHZ EAS Label RF—3057

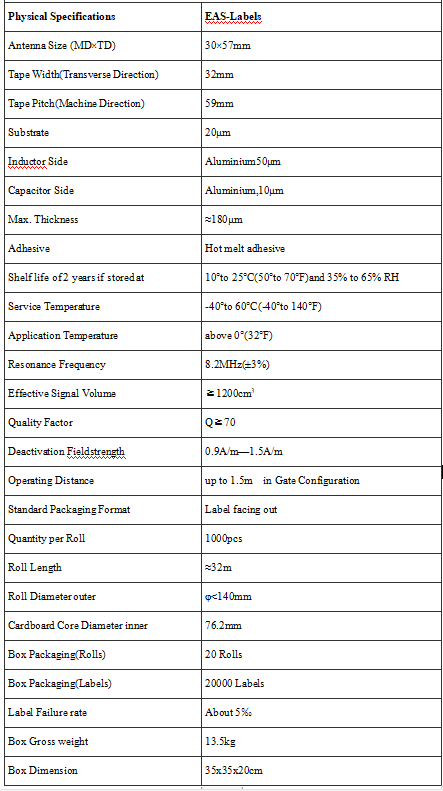

Physical Specifications

EAS-Labels

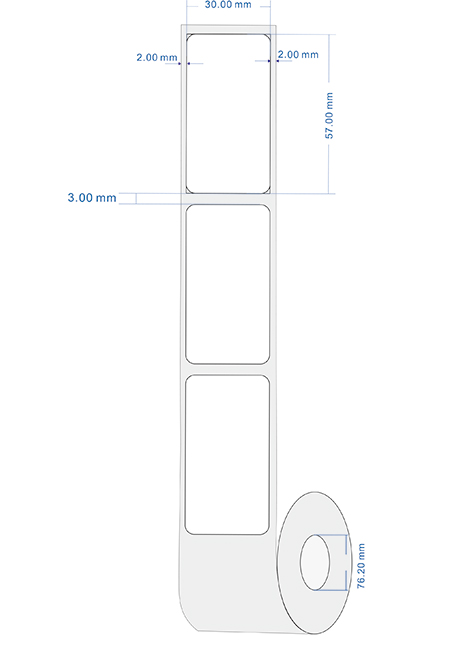

Antenna Size (MD×TD)

30×57mm

Tape Width(Transverse Direction)

32mm

Tape Pitch(Machine Direction)

59mm

Substrate

10μm

Inductor Side

Aluminium50μm

Capacitor Side

Aluminium,10μm

Max. Thickness

≈180μm

Adhesive

Hot melt adhesive

Shelf life of 2 years if stored at

10°to25℃(50°to70℉)and 35% to 65% RH

Service Temperature

-40°to60℃(-40°to140℉)

Application Temperature

above 0°(32℉)

Resonance Frequency

8.2MHz(±5%)

Effective Signal Volume

≧1200cm3

Quality Factor

Q≈70（EP label Q≈80）

Deactivation Fieldstrength

0.9A/m—1.5A/m

Operating Distance

up to 1.5m in Gate Configuration

Standard Packaging Format

Label facing out

Quantity per Roll

1000pcs

Roll Length

≈32m

Roll Diameter outer

φ<140mm

Cardboard Core Diameter inner

76.2mm

Box Packaging(Rolls)

20 Rolls

Box Packaging(Labels)

20000 Labels

Label Failure rate

About 5‰

Box Gross weight

13.5kg

Box Dimension

35x35x20cm
